Review Mapping

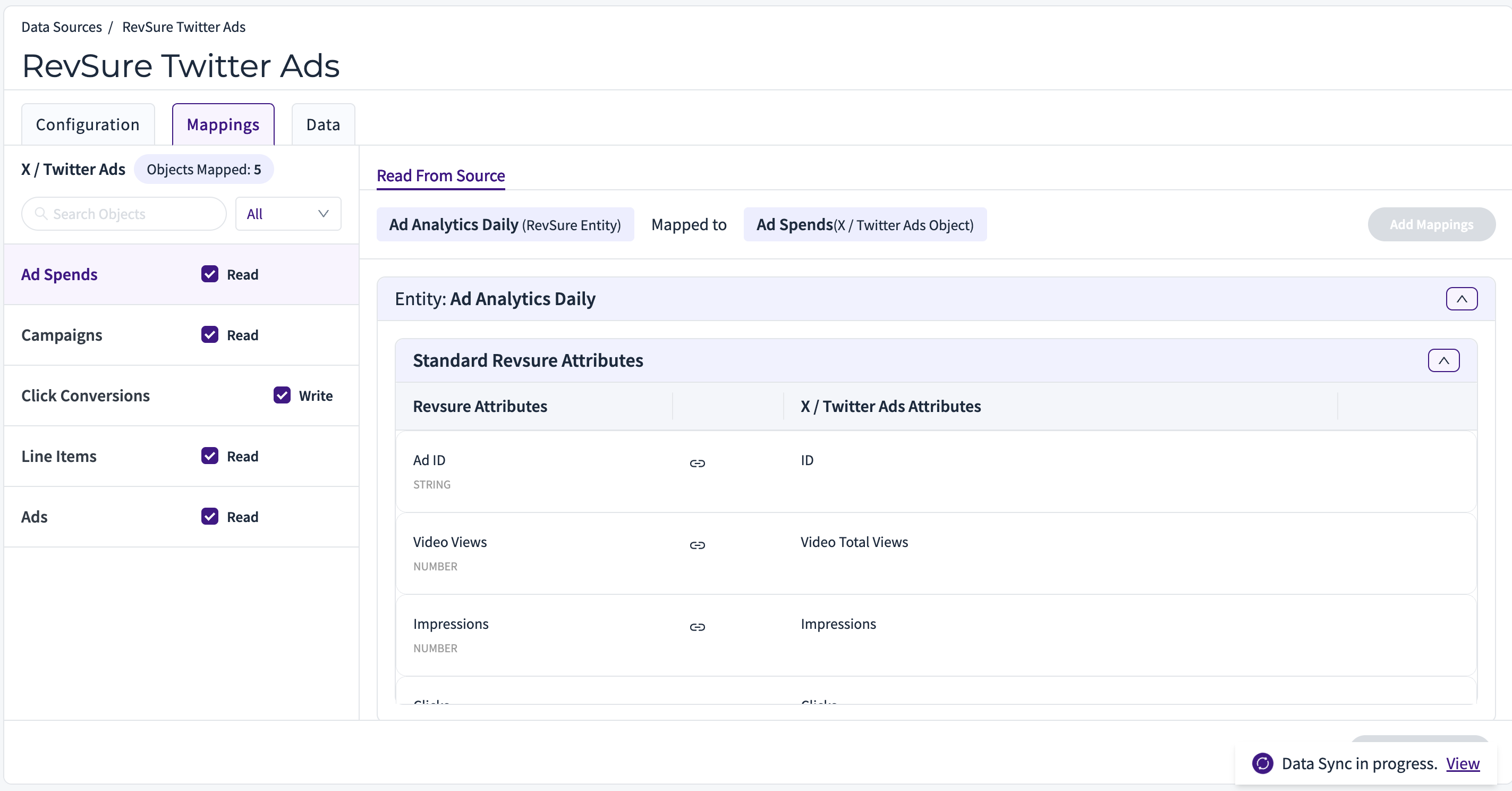

Mapping View

In this page, you can see the list of objects that are automatically mapped from X to RevSure. You can review and confirm the object mappings.

Objects: Lists the objects that are mapped from X
RevSure Entity: This section lists the RevSure entities mapped to the X objects.

For example, here the X Entity Ad Insights is mapped to RevSure Entity Ad. A RevSure Entity can be mapped to multiple source objects and vice versa
RevSure Attributes: A RevSure entity has a list of standard attributes.

Note: Use the toggle button present in the source objects list to un-map any source object to the RevSure entity

The RevSure attributes are mapped to X attributes

Adding New Mappings

If you would like to add a mapping for an attribute that is present in the RevSure Data Model,

Click Add Mappings on the Top right
Click Map Existing Attribute and Click Continue
Choose the entity that you would like to map to and click Map
Choose the RevSure Attribute and the Source Attribute, and then click Add Mapping

If you would like to add a mapping by creating a new custom attribute that is not part of the RevSure Model

Click Add Mappings on the Top right
Click Create Custom Attribute and click Continue
Choose the entity that you would like to map this new custom attribute to and click Map
Enter the name of your attribute, choose a datatype, choose the Source Attribute, and then click Add Mapping

Change Mappings

To change the mappings:

Hover over the source attribute name and click Edit.
Choose the new attribute that you want to map.
Click on the Delete icon to map the attribute to NULL

Note: Before changing the mapping name, go to Data View to confirm that you see the latest data values.

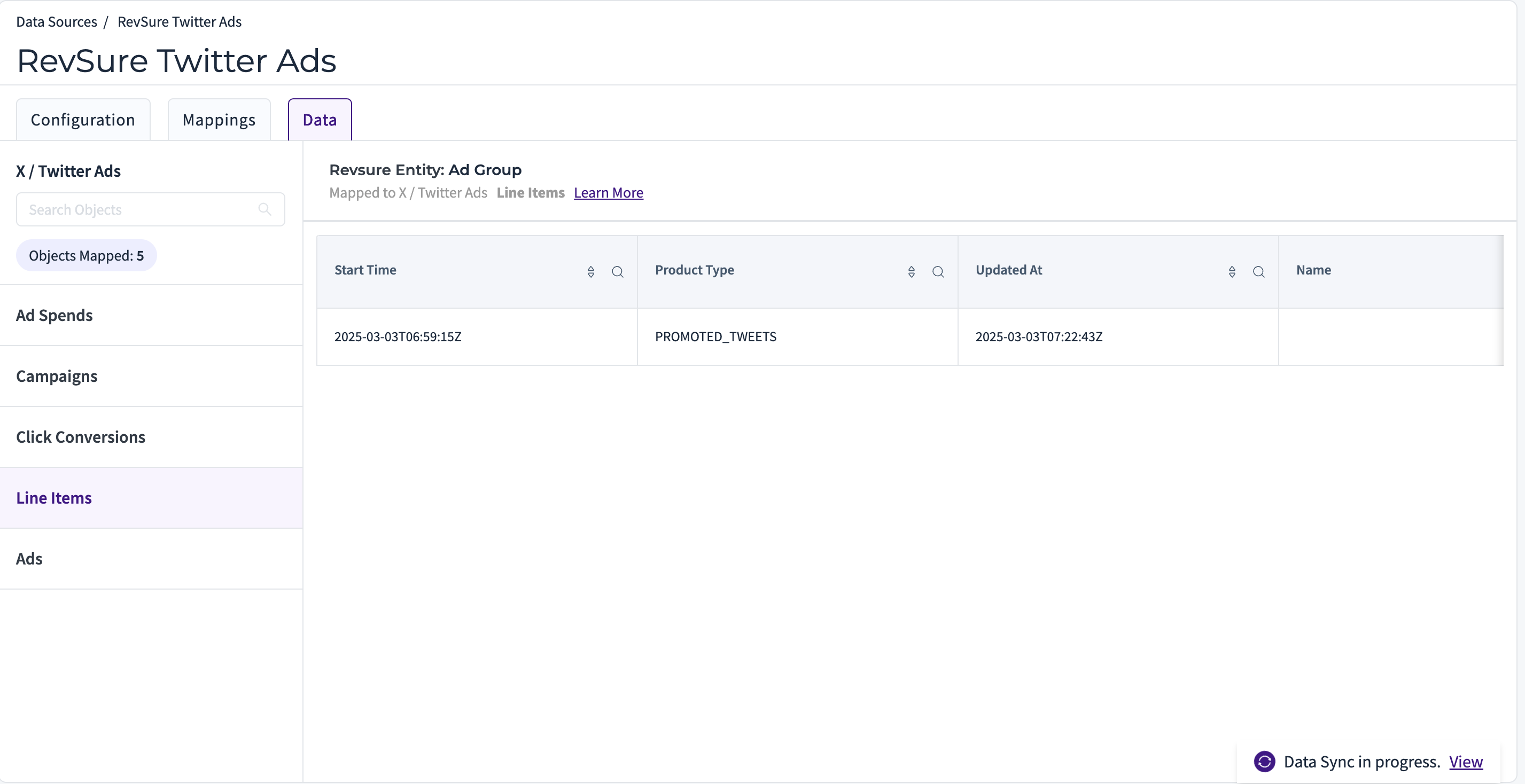

Data View

In this page, you can preview data of objects that are automatically mapped from X to RevSure and the data view for the selected object. This page also helps you confirm that the data integration is successful.

Select an X object to see the preview of the data.

Confirm Mapping
